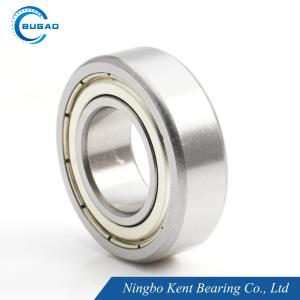

Non Standard High Speed Roller Bearings Silent Stainless Steel Roller Bearing P6

Name: Non Standard High Speed Roller Bearings Silent Stainless Steel Roller Bearing P6
Brand: BUGAO
Price: 1 USD

Quality Non Standard High Speed Roller Bearings Silent Stainless Steel Roller Bearing P6 wholesale

Brand Name : BUGAO

Model Number : 88511 Non-Standard

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1,000 sets

Price : Negotiable

Payment Terms : T/T,L/C,Western Union

Supply Ability : 30,000,000 sets per year

Delivery Time : 20-30 days

Packaging Details : Single/Individual Packing, Industrial/Tube Packing, Custom Packing

Bearing Name : High Speed Roller Bearings

Material : Bearing Steel, Carbon Steel, Stainless Steel 420, 340, 440

Bearing Type : Deep Groove Ball Bearing, Single Row

Precision : P0, P6, P5, P4

Clearance : C2, C0, C3, C4

Specification : Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Noise &Vibration : Z1V1, Z2V2, Z3V3, Z4V4

HS Code : 8482102000

Stock : Rich

OEM Service : Customization welcomed

Contact Now

High Speed Silent Ball Bearings Non-Standard Rolling Bearing Customed by Manufacturer

· Model: SC0563, 98305, 98205, can be customed as your datasheet

· Deep groove geometry for high speeds and supporting both radial and axial loads

· Chrome steel for durability and resistance to deformity under heavy loads

· Metal shields on both sides of the bearing to keep lubricant in and contaminants out

· Lubricated at manufacturer for no additional lubrication required

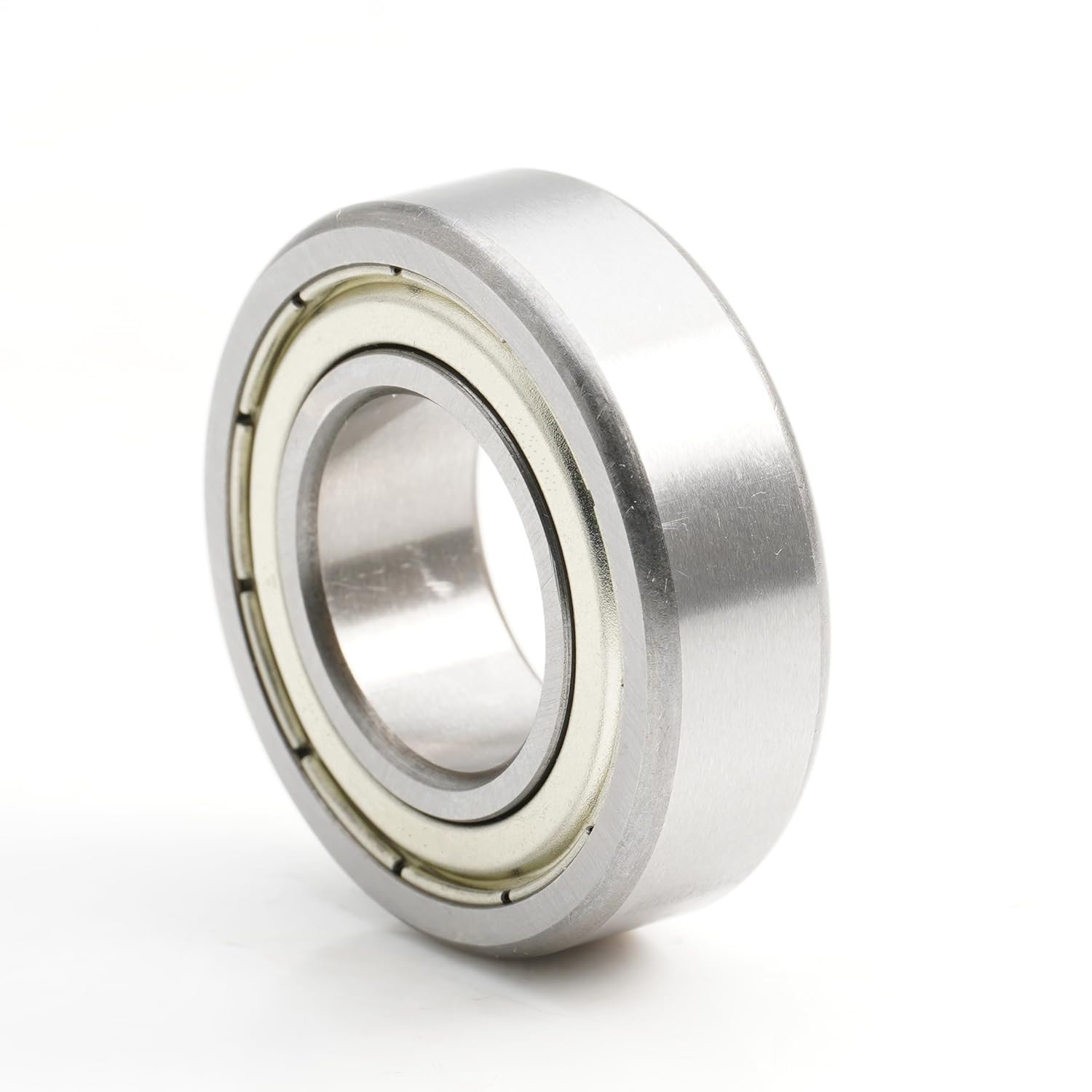

Non Standard High Speed Roller Bearings Silent Stainless Steel Roller Bearing P6

Technical Parameters of Non-Standard Deep Groove Ball Bearing:

Non Standard High Speed Roller Bearings Silent Stainless Steel Roller Bearing P6

Wide Applications of Deep Groove Ball Bearings:

Non Standard High Speed Roller Bearings Silent Stainless Steel Roller Bearing P6

Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

Non Standard High Speed Roller Bearings Silent Stainless Steel Roller Bearing P6

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50
